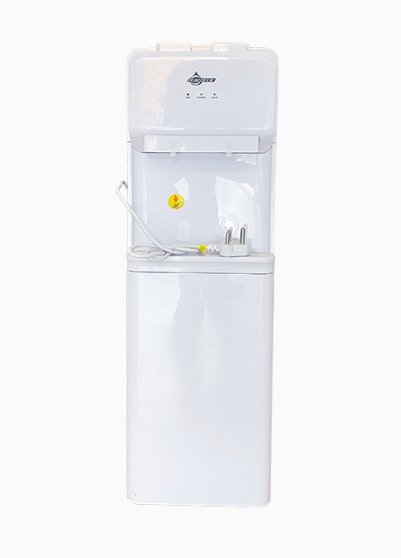

Water Dispenser Hot & Cold BY533
Water Dispenser Hot & Cold BY533
| Model No. | BY533 |
| Type | Top loading |
| Function | Hot & Cold |
| Voltage | 220-240V |
| Heating Power | 420W |
| Heating capacity | 5L/Hour |
| Hot tank capability | 0.8L |
| Cooling power | 85W |
| Cooling capacity | 2L/Hour |
| Cold tank capability | 2.7L |
| Compressor | Qiangjiang compressor |
| aluminum | |
| hot/cold tank Material | SS304 stainless steel |
| Cooling gas | R134 |
| Cabinet or Fridge | Cabinet |
| Product Dimension | 27 x 29 x 85.8cm |
| Carton Dimension | 30 x 32 x 88cm |
| Loading quantity | 308/812PCS 20GP/40HQ |
Operation Process
- Insert the bottle vertically on the seat and press the water faucets until the water flows out of the red hot water faucet.
- Insert the power plug into the wall socket and turn the electric switches ON to start the appliance. DO NOT MOVE BOTH SWITCHES AT THE TIME. Cooling and heating indicator lights should light up. The appliance is designed to provide hot or cold water whenever needed. It will automatically turn on and off when the water reaches the desired temperature.
